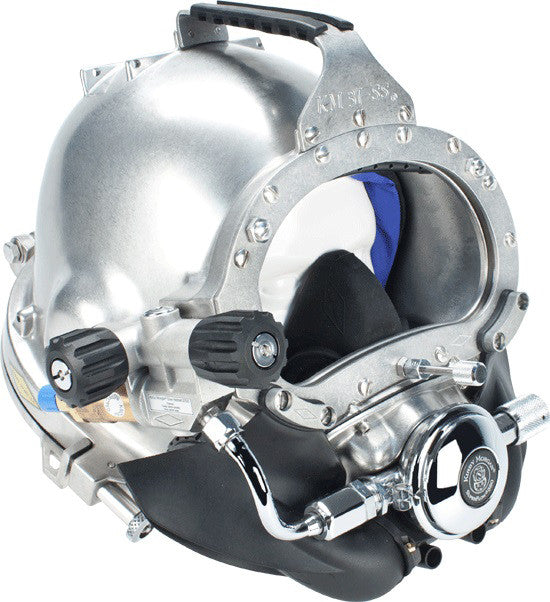

For The Diver Who Wants An All Metal Helmet With The Sleek Style Of The 37, The Stainless Steel Kirby Morgan® 37SS Helmet Is The Way To Go...
It features an all stainless steel shell, as well as a stainless sideblock, helmet ring, handle, and other key components. The SuperFlow® 350 is standard on this helmet.
The advantages of this stainless steel helmet include the following: -Rugged helmet shell and other components
-No refinishing required if the surface is scratched or gouged
-Elimination of threaded inserts for securing port retainer to helmet shell
CE Certification:
The Kirby Morgan® 37SS helmet has been tested and conforms to the performance requirements as set forth in Annex II of Directive 89/686/EEC and, as far as applicable, the EN 15333-1:2008/AC:2009 (class B). It is fully CE marked with demand regulator SuperFlow® 350 and oral nasals P/N 510-690 and P/N 510-747 (now standard).
What's in the box:
- KM 37 SS Diving Helmet- Part # 500-100 (POSTS) or 500-101 (MWP)
- Logbook w/ pen- Part # 125-001
- Helmet/Mask Bag- Part # 500-901
- Tool Kit with Pouch- Part# 525-620
- Neck Dam Assembly, size Medium- Part# 525-628
- Head Cushion Assembly(Snoopy)- Part# 510-754
- Current Certification
- Test Specifications
- Warranty registration card
Air Train
The air train diffuses incoming breathing air/gas onto the face port/lens to defog and ventilate.
|
Defogging Steady Flow Valve
Provides an additional flow of gas into the helmet for ventilation and defogging.
|
Emergency (EGS) Valve
Emergency (EGS) Valve supplies backup breathing gas to the diver. This valve is an integral, built in part of the stainless steel sideblock.
|
Whisker Wings
Bubble deflecting Whisker wings keep bubbles further from face port and ears, improving visibility and decreasing internal noise.
|
Gas Supply Non-Return Valve
Commercial Rated™, It prevents loss of gas pressure in the event of umbilical damage.
|
Nose Block Device
Nose Block Device allows the diver to block the nose to equalize ears.
|
SuperFlow® 350 Regulator
This all metal, fully adjustable, Commercial Rated™ demand regulator provides easy breathing and excellent performance with low pressure compressors.
|
Rapid Change Modular Communications Systems
Because the module is easily removed the helmet, repair or replacement of communications parts is quick and trouble free. It is available with either a male waterproof connector or a bare wire post connection.
|
Stainless Steel Shell
After x-ray inspection, each 316 stainless steel shell, is precision CNC machined to tight tolerances, to ensure proper fit to all other mating parts. The shell is durable and easy to maintain. Easily cleaned using a Scotch Brite® or similar type cleaning pad.
|
Stainless Steel Side Block
Multi use side block has additional ports built in to provide controlled air flow, if needed. The stainless steel sideblock has a built in EGS.
|
Silicone Oral Nasal Mask
Made of silicone material which is hypo-allergenic and has a longer work life than latex.
|
Handle
Removable Grip and handle. Handle can be removed without breaking seals, making it quick and easy to attach accessories.
|
Auxiliary Port
The auxiliary port will allow for future add-ons and modifications to the stainless steel helmets. It is located on the port side of the shell as shown below.
|
